Filter Fabric for Dust Collector Filter Cartridges

Home Filter Material Filter FabricFilter Fabric for Dust Collector Filter Cartridges

Filter Fabric for Dust Collector Filter Cartridges: Suitable for New Installations & Renovation Uses

In the filter cartridge dust collection system, incorrect filter material selection can jeopardize personal safety, create high resistance, and increase production costs. The selection of filter material needs to be determined based on specific applications and types of dust. For example, choosing filter material treated with a coating to facilitate backflushing, flame retardancy, or conductivity. PLM Filter filter fabric for dust collector filter cartridges is specially treated to provide various properties, such as anti-static, oil and water resistance, or handling sticky dust. Using the correct filter material can create a safer, cleaner working environment and reduce the maintenance workload of the dust collector. PLM Filter is committed to providing air filter materials, accessories, and air pollution control solutions for commercial and industrial applications, enhancing customer productivity, reducing energy consumption, and benefiting human health and the environment.

Product Catalogue Order Information

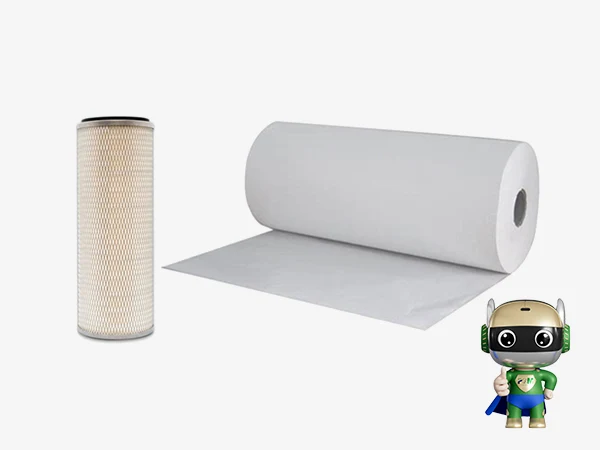

Filter fabric for dust collector filter cartridge and a dust collector filter cartridge

High Stiffness
No Deformation Under Negative Pressure
Moderate Thickness
High Strength & Long Service Life
Long-Term Stability
Environmentally Friendly & Safe

Surface Treatment
Types
Common Specifications

Surface Treatment

Flame Retardant

Perform fire-retardant treatment on combustible materials to reduce the likelihood of fire.

Anti-Static

Anti-static and explosion-proof

PTFE Coating

Improve dust removal performance, enhance filter rating

Waterproof, Oil-Proof &Anti-fouling

Reduce surface tension of filter material, making dust removal easier

Types

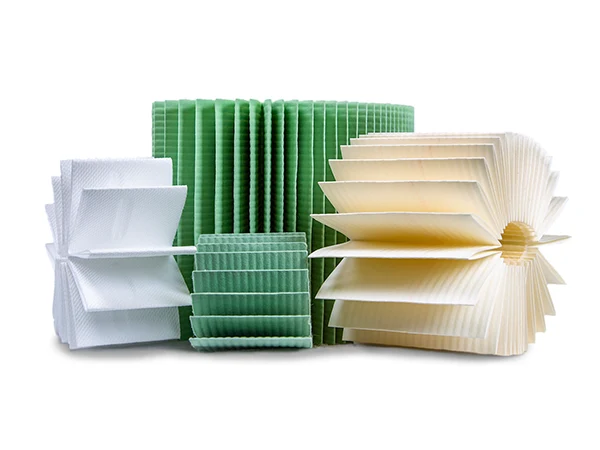

Wood Pulp Fiber Series

Material: High-efficiency wood pulp fiber filter material.
Features: Small pore size, large air permeability, low resistance, high power, large filtration area, etc.
Application range: Gas turbines, centrifugal compressors, and other large units for inlet filtration, sandblasting and dust removal of large particle low concentration dust media.

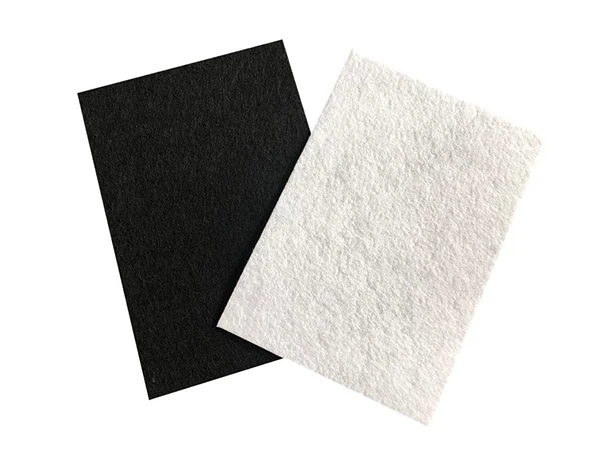

Long Fiber Polyester Series

Material: High strength polyester long fiber non-woven filter material.
Features: Wear resistance and high strength, burst resistance, easier cleaning with pulse jet and other methods, can be repeatedly cleaned with water without damaging the filter material, extending its service life.
Application range: Suitable for dust purification and removal in industries such as steel, cement, chemical, machinery, tobacco, pharmaceuticals, nuclear power, thermal power, environmental protection, and coating.

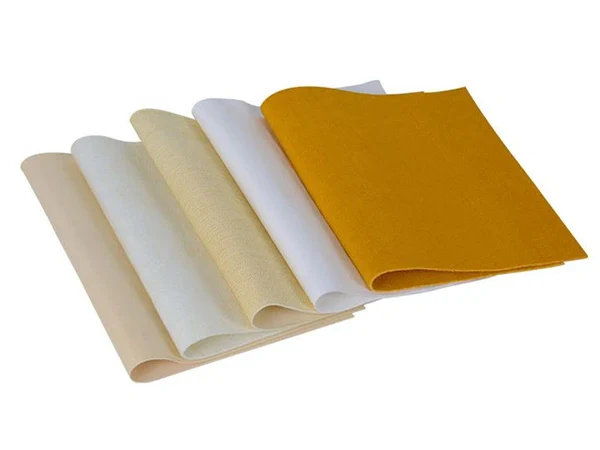

Polyester Fiber Membrane Series

Material: Polyester long fiber as the base material, coated with ePTFE film on the surface.
Features: Small pore size, high porosity, high efficiency, and low resistance; smooth surface, water and oil repellent; extremely low friction coefficient, good non-stick properties; chemical corrosion resistance, high temperature resistance; improved filter rating.
Application range: Ultra-low emission projects for dust media in industries such as steel, cement, chemical, machinery, tobacco, pharmaceuticals, nuclear power, thermal power, environmental protection, and coating.

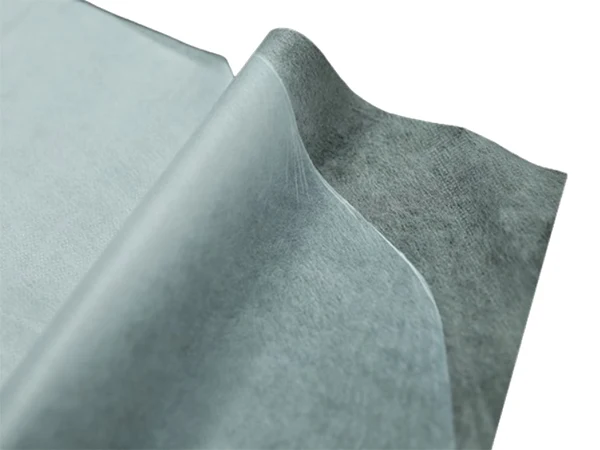

Composite fiber nano flame retardant filter fabric

Composite Fiber Nano Flame Retardant Filter Material Series

Material: 80% wood pulp + 20% polyester composite material as the base material, using high-pressure electrostatic spinning technology.
Features: High efficiency, low resistance, moisture-proof, and can withstand the pressure of pulse back-blowing well.
Application range: Low concentration dust media such as welding fumes, cutting fumes, gas turbines, centrifugal air compressors, large units' inlet filtration, and sandblasting dust removal. For oily dust conditions where the original PTFE coated material tends to clog, using this nanofiber filter material will solve this problem.

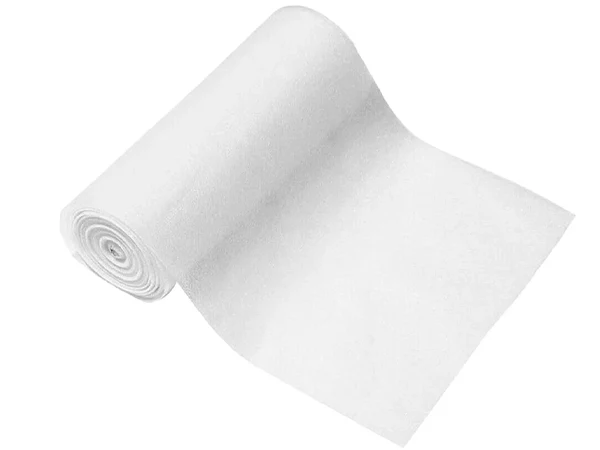

PP Fiber Series

Material: PP fiber non-woven filter material.
Features: Excellent filtration performance, corrosion resistance, chemical resistance, high strength, and pressure resistance.
Application range: Purification and dust removal in industries such as chemical, pharmaceutical, food and beverage, metallurgy, and power.

Common Specifications

Table 1: Common Specifications of Filter Fabric for Dust Collector Filter Cartridges
Code Number	Composition	Unit Weight/(g/m²)	Thickness/mm	Air Permeability/	Breaking Strength (5 cm × 20 cm)/N		Working Temperature/°C	Filter Rating/μm	Dust Removal Efficiency/%	Accuracy Grade	Remarks
Code Number	Composition	Unit Weight/(g/m²)	Thickness/mm	Air Permeability/	Horizontal	Vertical	Working Temperature/°C	Filter Rating/μm	Dust Removal Efficiency/%	Accuracy Grade	Remarks
LMCTP-250	PET	170	0.45	220	250	300	≤ 135	5	≥ 99	F6	Flame retardant treatment available
LMCTP-150	PET	260	0.6	150	380	440	≤ 135	5	≥ 99.5	F6	Flame retardant treatment available
LMCTM-110	Wood pulp fiber	120	≥ 0.6	110	–	–	≤ 80	5	≥ 99.5	F6	–
LMCTMH-110	Wood pulp fiber and synthetic fiber	120	≥ 0.6	110	–	–	≤ 80	5	≥ 99.8	F6	–
LMCTPF-150	PET	260	0.6	150	380	440	65	5	≥ 99.5	F6	Water and oil repellent function
LMCTPF-70	PET	260	0.6	50-70	380	440	≤ 80	0.3	≥ 99.9	H11	PTFE coating, anti-static function
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales staff for detailed inquiries. Contact Us

Professional Advice

In the field of filter fabric for dust collector filter cartridges, different types of dust and different usage conditions require different filter fabric selections. To help you quickly choose the required product, we will make recommendations based on your specific situation and provide full-process technical support.

First, different types of dust require different types of filter fabric with different functions. For example, if the dust is flammable, the filter fabric needs to undergo flame retardant treatment or anti-static treatment to prevent explosions; If the dust has high humidity, it can easily cause dust to adhere to the surface of the filter cartridge. In this case, you may consider choosing filter material with waterproof functions.
Secondly, the operating conditions will also affect the choice of filter fabric. For example, if the dust inlet concentration is very low and the filtration wind speed is also chosen to be low (such as in atmospheric dust removal or welding fume treatment), thin filter media can be considered. This helps to increase the filtration area and improve the flow rate of a single filter cartridge.
Additionally, the use of adhesives in the production process is also very important. If high temperatures are likely to cause the adhesive in the pulse jet cartridge dust collector to melt, leading to the detachment of the filter cartridge end cap and filtration surface, we will provide technical support based on the specific issues you are facing.

We are committed to providing you with the most professional service and the highest quality products. We look forward to cooperating with you. If you have any questions or needs, please feel free to contact us.

Our mascot heroman is giving his professional advice.

The designer is performing custom product design on the computer.

Customize Your Solution

PLM Filter provides customized solutions for dust collector filter cartridge manufacturers (including sample testing and customization) to meet specific customer needs.

Expert Consultation

Production Process & Product Recommendations

Dust collector filter cartridge on a gray background

Dust Filter Cartridge Production Process

Specializing in providing filter fabric, hot melt adhesive and metal mesh for dust collector filter cartridge production.
