HEPA and ULPA Two-Component Adhesives – Efficient, Durable & Tear-Resistant

Sealing is crucial for HEPA and ULPA filtration systems as well as HVAC systems. PLM Filter's two-component adhesive can operate in various harsh environments, specifically designed for sealing and bonding HEPA and ULPA air filters and HVAC filter frames. This adhesive requires no preheating, possesses excellent flowability and adhesion, and its strength is sufficient to remain intact under rough handling without cracking or tearing.

The filter market is complex and ever-changing, and adhesive suppliers must understand the manufacturing processes and market challenges, and adjust materials and processes as filtration technology evolves. Our adhesives are always at the forefront, providing innovative solutions to address bonding issues. Over the years, we have accumulated extensive experience in the field of sealing and bonding technology, offering a variety of effective solutions to our customers. We are well aware of our responsibilities and are committed to becoming a leading supplier, partner, and resource in the filter industry.

Product Catalogue Order Information

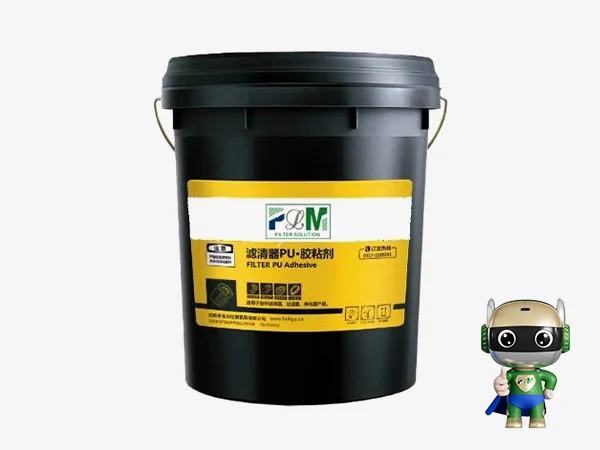

Two-component adhesive on a white background

Eco-Friendly & Solvent-Free
Acid & Alkali Resistance
Resistant to High & Low Temperatures
Strong Adhesion
Cures at Room Temperature, Easy to Use

Applications
Products & Applications
Common Specifications

Applications

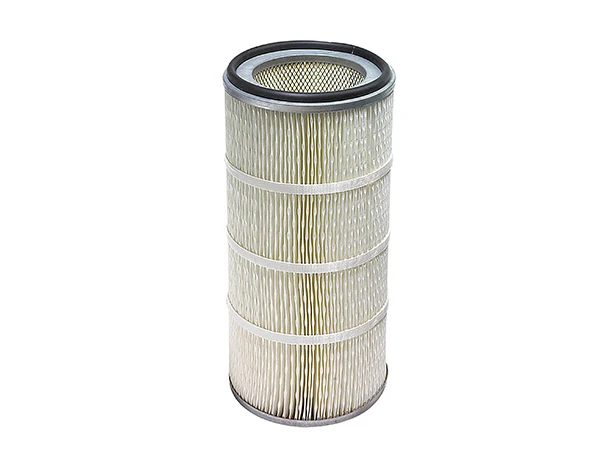

For dust collector filter cartridge end cap

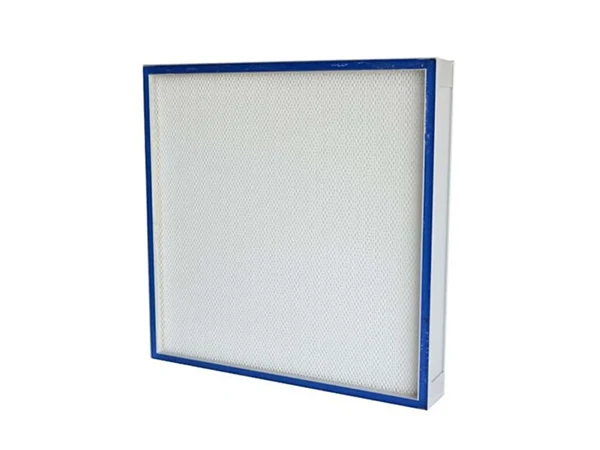

A liquid tank high-efficiency air filter

For high-efficiency air filter frame

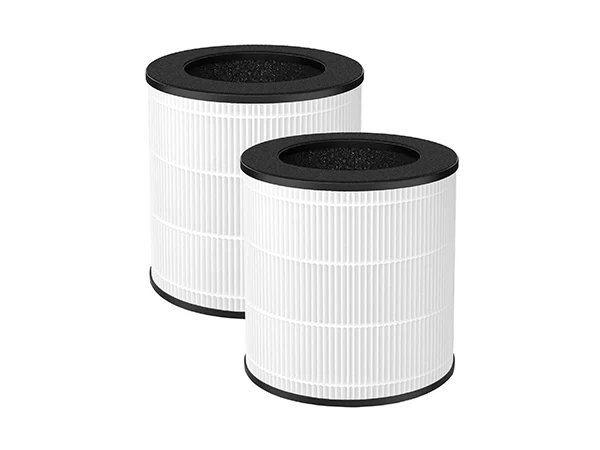

For air purifier filter end cap

Products & Applications

Table 2: Application List of Two-Component Adhesive
Application	LM1541	LM1641	LM1645	LM1841
Dust Filter Element	√	√	√
Industrial Filter	√	√	√
Air Cleaner & Purifier				√

Common Specifications

Table 1: Common Specifications of Two-Component Adhesives
Model		LM1541	LM1641	LM1645	LM1841
Tensile Strength (Steel-Steel) (MPa)		> 4.0	> 4.0	> 4.0	> 4.0
Tensile Shear Strength (Steel-Steel) (MPa)		> 3.0	> 3.0	> 3.0	> 3.0
Tensile Strength of Paper Filter Element (C0304) N		> 700	> 700	> 700	> 700
A:B		5:1	6:1	6:1	8:1
Liquid Color	A	White	White	White	White
Liquid Color	B	Brown	Brown	Brown	Brown
Volatile Content (%)	A	≥ 98	≥ 98	≥ 98	≥ 98
Volatile Content (%)	B	≥ 98	≥ 98	≥ 98	≥ 98
Density (g/mL)	A	1.35±0.1	1.4±0.1	1.3±0.1	1.4±0.1
Density (g/mL)	B	1.22±0.05	1.22±0.05	1.22±0.05	1.22±0.05
Viscosity (mPa·s at 25 °C)	A	3000 – 6000	3000 – 6000	3000 – 6000	3000 – 6000
Viscosity (mPa·s at 25 °C)	B	200 – 250	200 – 250	200 – 250	200 – 250
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Professional Advice

In the field of two-component polyurethane adhesives, different working temperatures, the chemical properties of the filtration media, and different working environments can all influence the choice of two-component polyurethane adhesives. To help you select the most suitable product, we will make recommendations based on your specific application and provide comprehensive technical support throughout the process.

Firstly, we know that HEPA and ULPA filtration systems may operate at different temperatures, so the adhesive needs to have different high-temperature and low-temperature resistance properties. We will recommend products based on the working temperature of your product.
Secondly, the media filtered by HEPA and ULPA filter systems have different chemical properties. Cleaner filter media and those containing detergents and solvents have distinctly different requirements for the chemical stability of adhesives. We will recommend suitable products based on the media you are filtering.
Additionally, during the HEPA and ULPA filter production process, we will provide you with comprehensive technical support, including adhesive application methods, mixing ratios, and adjustments to the glue spraying machine, helping you improve production efficiency and reduce production costs.

We are committed to providing you with the most professional service and the highest quality products, and we look forward to cooperating with you. If you have any questions or needs, please feel free to contact us.

Our mascot heroman is giving his professional advice.

The designer is performing custom product design on the computer.

Customize Your Solution

PLM Filter provides customized solutions for primary, medium, and high-efficiency filter manufacturers to meet specific customer needs.

Expert Consultation

Production Process & Product Recommendations

Dust collector filter cartridge on a gray background

Dust Collector Filter Cartridge Production Process

Specializing in providing filter fabric, hot melt adhesive and metal mesh for dust collector filter cartridge production.

High-efficiency filter on a gray background

Primary, Medium & High-Efficiency Filter Production Process

Providing various filter fabric, metal mesh and hot melt adhesive for primary, medium and high-efficiency filter production.
