Plastic Frames for HVAC Systems – For OEM & Aftermarket

Plastic frames for air filters are located within HVAC systems and are used to secure medium, high-efficiency, and ultra-high efficiency filter media. HVAC systems are usually complex and demanding, requiring all parts to work together to achieve set goals. This places higher demands on the stability, sealing, and chemical resistance of the frames. PLM Filter ABS plastic frames are sturdy, durable, aesthetically pleasing, and have good sealing performance. Besides, they are easy to install and remove, and are corrosion-resistant. They can be customized according to your needs to meet applications in various environments, suitable for OEM and aftermarket. Our company offers three types of plastic frames: V-shaped, box-type, and plate-type, to meet the needs of various applications.

With years of industry expertise and experience, PLM Filter serves leading manufacturers in the industry, helping partners upgrade product quality. Trust us to help you achieve greater business success.

Product Catalogue Order Information

Durable
Easy to Install
Smooth & Attractive Appearance
Detachable, Washable, & Reusable
Eco-Friendly & Non-Toxic

Category
Common Specifications

Category

V-shaped plastic frame

Box plastic frame

Panel plastic frame

Common Specifications

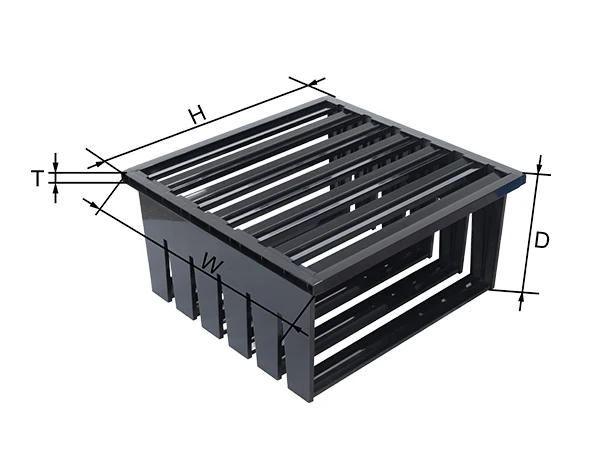

Table 1: Common Specifications of V-Shaped Plastic Frame
Type	Code Number	Quantity	Thickness (T)	Width (W)	Height (H)	Depth (D)
V-shaped plastic basket	LMVK-6V-1	6V	25 mm	592 mm	592 mm	292 mm
	LMVK-5V-1	5V	25 mm	610 mm	610 mm	292 mm
	LMVK-5V-2	5V	20 mm	594 mm	594 mm	292 mm
	LMVK-4V-1	4V	25 mm	592 mm	592 mm	292 mm
	LMVK-4V-2	4V	23 mm	592 mm	592 mm	292 mm
	LMVK-4V-3	4V	23 mm	592 mm	592 mm	435 mm
	LMVK-3V-1	3V	25 mm	592 mm	592 mm	292 mm
	LMVK-2V-1	2V	25 mm	592 mm	592 mm	292 mm
	LMVK-1V-1	1V	–	290 mm	194 mm	264 mm
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Table 2: Common Specifications of Box Plastic Frame
Type	Code Number	Quantity	Width (W)	Height (H)	Depth (D)
Box plastic basket	LMXK-6V-1	6V (No Flange)	605 mm	605 mm	290 mm
	LMXK-5V-1	5V (No Flange)	610 mm	610 mm	292 mm
	LMXK-5V-2	5V (No Flange)	610 mm	305 mm	292 mm
	LMXK-5V-3	5V (No Flange)	592 mm	592 mm	292 mm
	LMXK-5V-4	5V (No Flange)	592 mm	287 mm	292 mm
	LMXK-4V-1	4V (No Flange)	610 mm	610 mm	292 mm
	LMXK-2V-1	2V (No Flange)	305 mm	610 mm	292 mm
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Table 3: Common Specifications and Parameters of Panel Plastic Frames
Type	Code Number	Flange	Thickness (T)	Width (W)	Height (H)	Depth (D)	Inner Diameter
Panel Plastic Basket	LMBK-DF-1	With Flange	20 mm	592 mm	592 mm	292 mm	540±2 mm
	LMBK-BF-1	Without Flange	–	592 mm	592 mm	292 mm	580±2 mm
	LMBK-BF-2	Without Flange	–	592 mm	592 mm	292 mm	540±2 mm
	LMBK-DF-2	With Flange	25 mm	592 mm	592 mm	292 mm	540±2 mm
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Professional Advice

In the field of plastic frame for air filters, PLM Filter has accumulated extensive expertise and experience. With our professional advice, we believe we can help you quickly find the product type that suits you.

Firstly, if the client requires high filtration efficiency and a large ventilation volume, we recommend choosing V-shaped or box-type frames; For general air purification needs, panel frames are also an economical and efficient choice.
Secondly, determine your installation space. If the installation space is limited, a box frame may be more suitable due to its space-saving characteristics.
Additionally, consider the maintenance requirements. If the client desires a simple and quick maintenance process, the V-shaped frame's easy disassembly and cleaning design might be more popular; The panel frame also has high reliability and stability, but the ease of maintenance depends on the model and process.

In conclusion, when choosing an air filter with a plastic frame, various factors such as needs, characteristics, and applicable scenarios should be comprehensively considered to make the most suitable choice. We are committed to providing you with the most professional service and the highest quality products, and we look forward to cooperating with you. If you have any questions or needs, please feel free to contact us.
