Metal Mesh – Enhancing the Impact Resistance and Service Life of Filters

Metal mesh is made from galvanized or stainless steel sheets, offering excellent corrosion resistance, robust structure, and long service life. It is widely used as the inner support mesh or outer protective mesh for truck air filters, car air filters, high-efficiency air filters, and hydraulic filters. It protects the filter from deformation, enhances the filter's impact resistance, and extends its service life, making it an essential component for internal support and external protection of filters. PLM Filter offers two types of metal mesh: perforated metal mesh and expanded metal mesh. Both are made from high-quality galvanized sheets and stainless steel sheets, featuring durability, high-temperature resistance, and high strength, which can significantly extend the service life of the filter.

As an industry expert in automotive filter consumables and accessories, PLM Filter is committed to providing innovative solutions for the automotive filtration industry and putting them into practice. We look forward to collaborating with you to jointly promote the development and progress of the industry.

Product Catalogue Order Information

Automotive filter and metal mesh on a white background

Sturdy & Durable
Strong Impact Resistance
High Strength
Excellent Corrosion Resistance
High Temperature Resistance

Category
Diagram
Applications
Common Specifications

Category

Perforated metal mesh

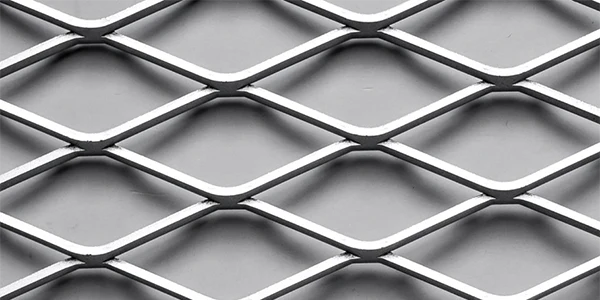

Expanded metal mesh

Diagram

Perforated metal mesh length and width

Perforated metal mesh dimensions

Expanded metal mesh length and width

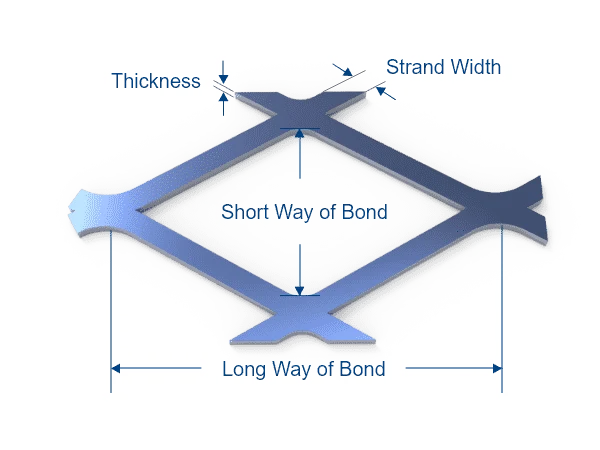

Expanded metal mesh dimensions

Applications

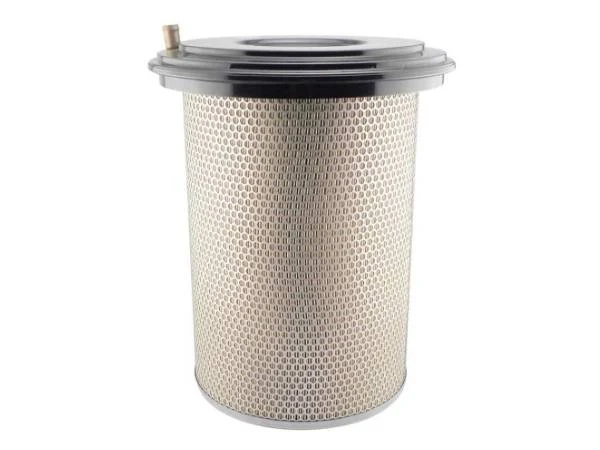

Truck air filter

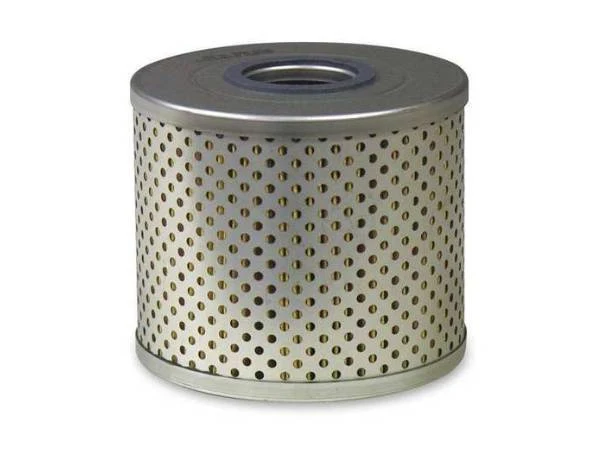

Hydraulic filter

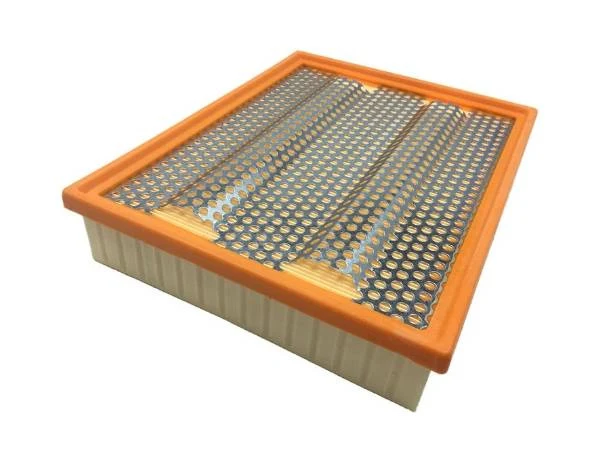

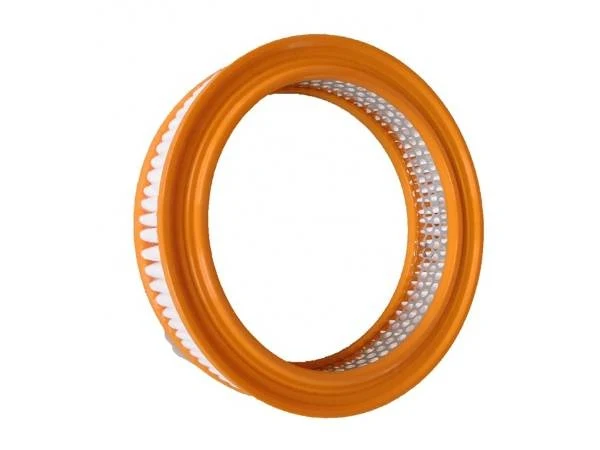

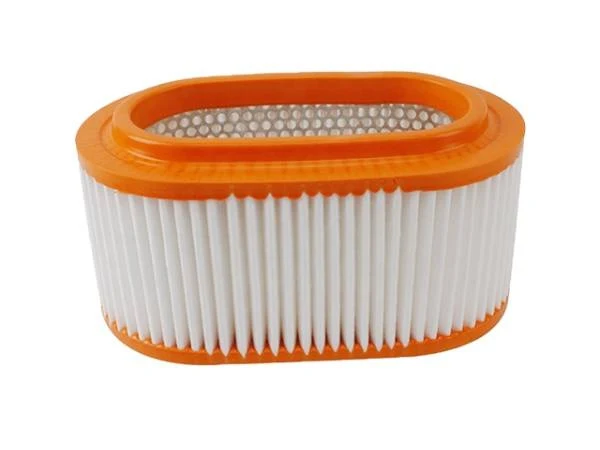

PU car air filter

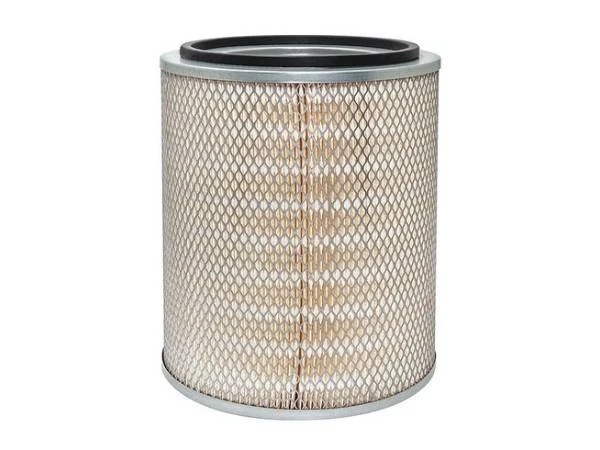

Air compressor air filter

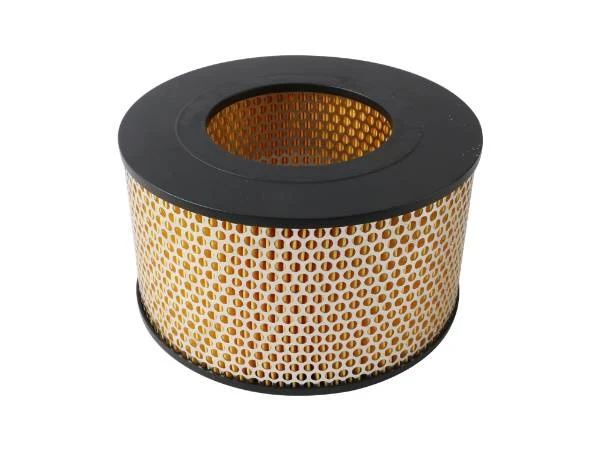

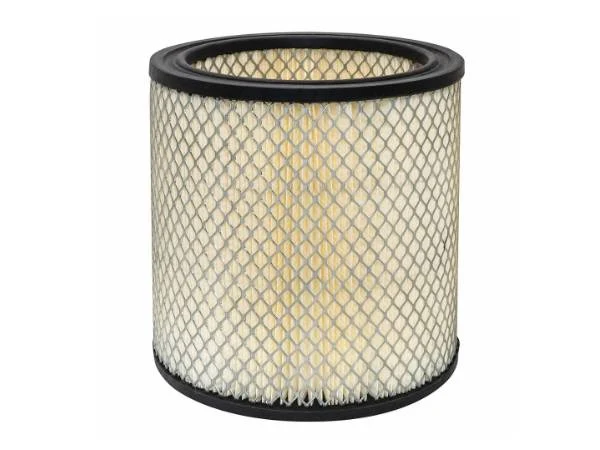

Truck air filter

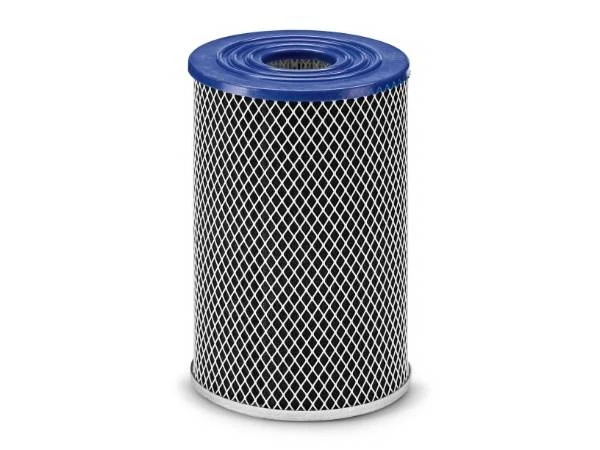

Vacuum cleaner filter

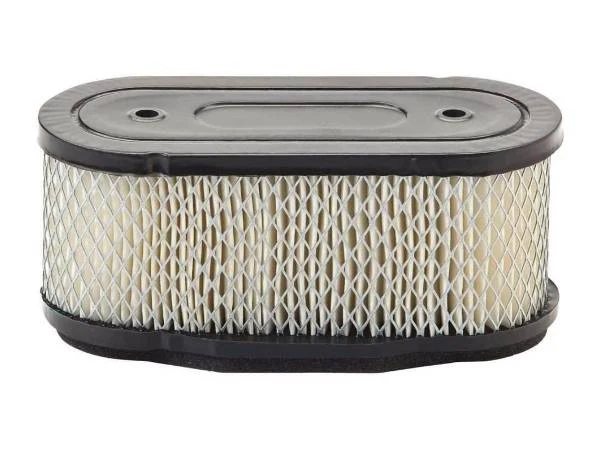

Lawn mower air filter

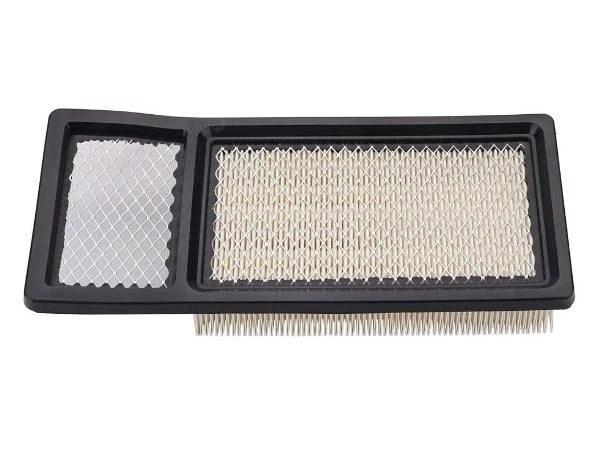

Car air filter

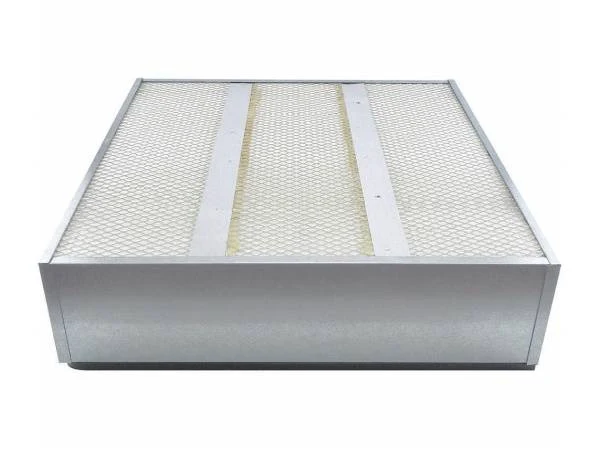

Industrial high-efficiency filter

Common Specifications

Table 1: Common Specifications of Perforated Metal Mesh
Material	Aperture (mm)	Spacing (mm)	Thickness (mm)	Size (m)
Galvanized or Stainless Steel	4	2	0.4/0.5/0.6	1 × 20
	6	2
	8	3
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Table 2: Common Specifications of Expanded Metal Mesh
Material	Surface Treatment	Aperture (mm)	Sheet Thickness (mm)	Wire Width (mm)	Net Width (mm)	Net Length (m)	Application
Carbon steel	Galvanized	3 × 4, 4 × 6, 6 × 12, 5 × 10, 8 × 16, 7 × 12, 10 × 17, 10 × 12, 10 × 20, 15 × 30, 17 × 35 or custom	0.35/0.4/0.5/0.6	1 or 1.25	109–1250 or custom	20	Inner or outer mesh of the filter
Note: The above are some common specifications and parameters. If you do not find a suitable product, you can contact our sales representative for detailed inquiries. Contact Us

Professional Advice

In the field of metal mesh for automotive filters, at first glance, the products from various manufacturers appear largely the same, but upon closer analysis, significant differences can be found. To help customers quickly find suitable manufacturers and products, we offer the following suggestions:

First, manufacturer strength. We have been engaged in the field of automotive filter materials and accessories for many years. As an industry expert, we serve numerous small, medium and large enterprises and OEM brands, accumulating a wealth of expertise and experience. You can completely trust us.
Second, quality assurance. We have established a strict quality control system. Products undergo rigorous inspections by QC inspectors, and all products are traceable.
Finally, technical support. We have a professional technical team that can provide you with full-process technical support to make your production process more efficient.

We are committed to providing you with the most professional service and the highest quality products, and we look forward to cooperating with you. If you have any questions or needs, please feel free to contact us.

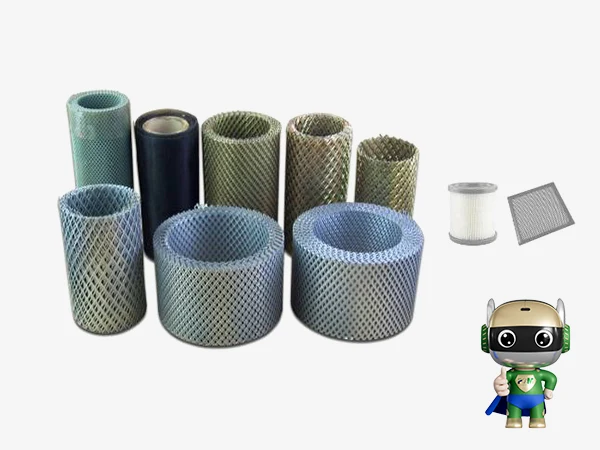

Our mascot heroman is giving his professional advice.
